產(chǎn)品描述

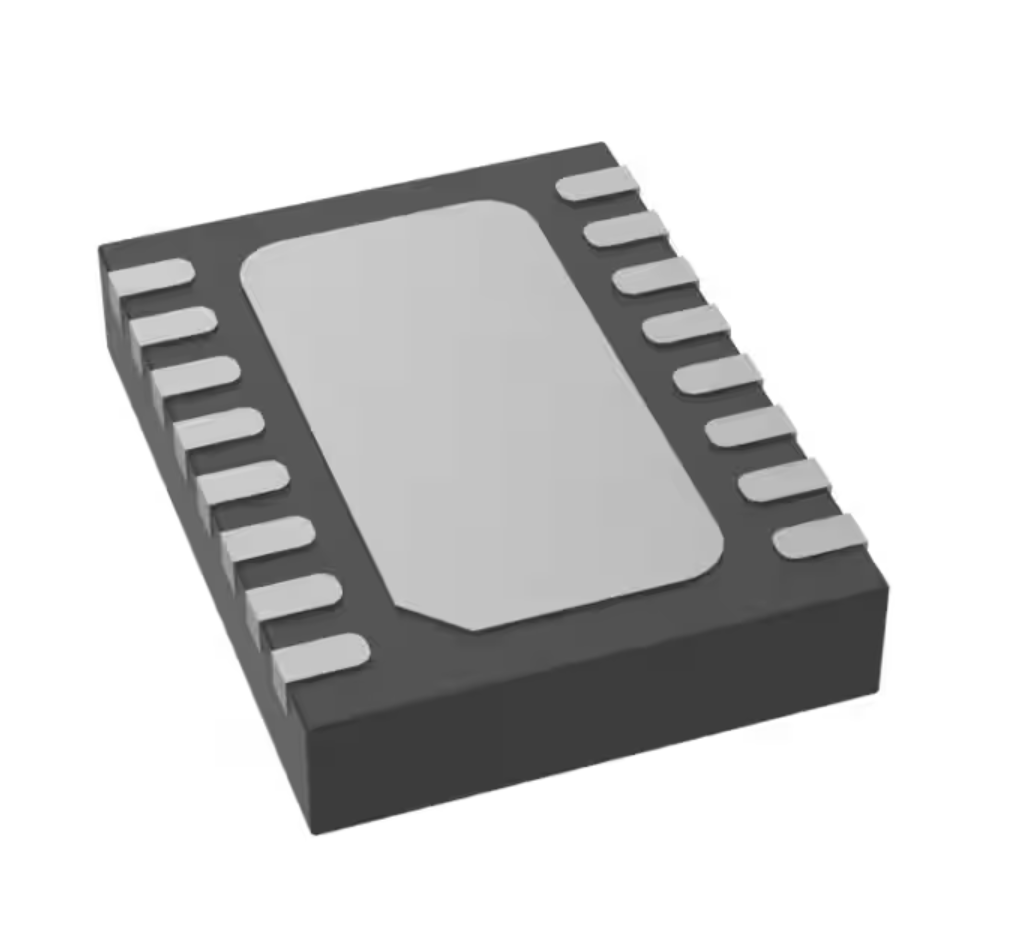

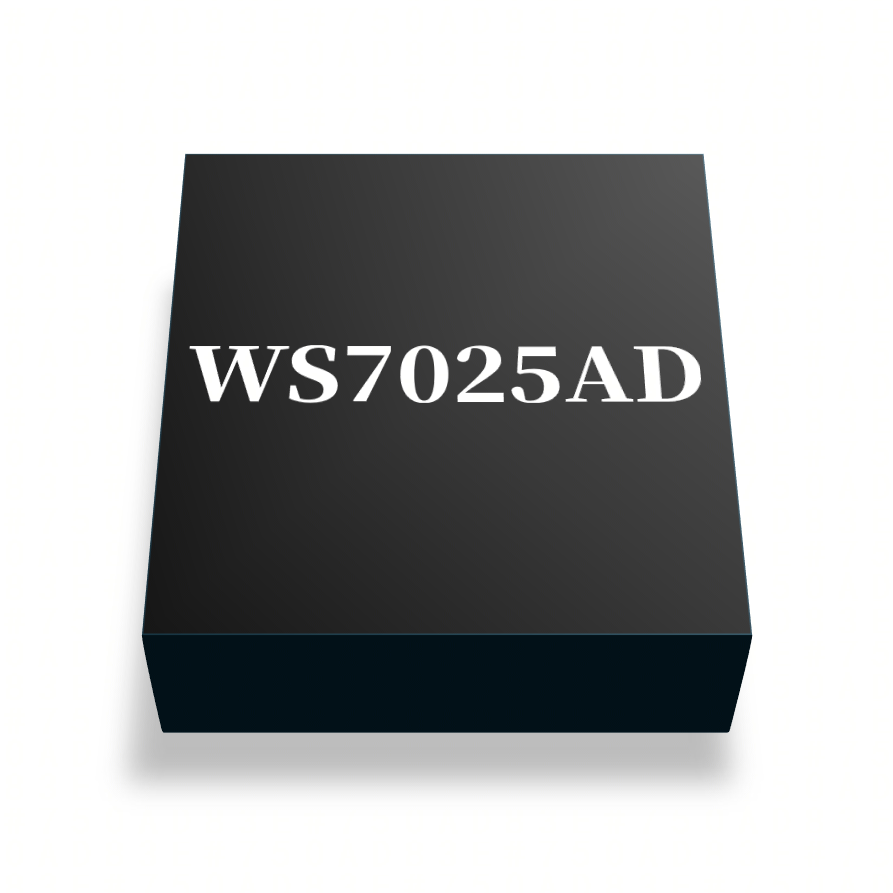

Smart High-Side Power Switch Single Channel, 30mΩ, DFN5×6-16L , AEC-Q100 qualified

主要特點(diǎn)

Basic Features

◆ Single channel device
◆ Standby current <1.0μA
◆ 3.3 V and 5 V compatible logic inputs
◆ RoHS compliant and lead free
◆ AEC-Q100 qualified

Diagnostic Functions

◆ Multiplexed analog feedback of load current with high precision proportional current mirror
◆ Off-state open load detection
◆ Output short to Vs detection

Protection Functions

◆ Undervoltage shutdown
◆ Overvoltage clamp
◆ Load current limitation
◆ Output short-circuit protection
◆ Self limiting of fast thermal transients
◆ Protection against loss of ground and loss of Vs
◆ Thermal shutdown indication
◆ Electrostatic discharge protection

規(guī)格書
